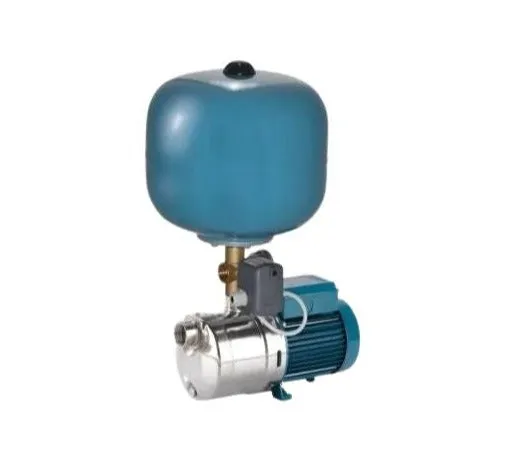

Calpeda MXHL 304ss Horizontal Multistage Close Coupled Pressure Pumps with 8L Pressure Tank

Calpeda MXHLM Single Phase Pressure Pumps - Horizontal multistage close coupled pump in chrome-nickel stainless steel with Idromat pump regulator. Universal pump, for civil and industrial applications, for garden use and irrigation.

For water supply
For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request)
Universal pump, for civil and industrial applications, for garden use and irrigation

CONSRUCTION

Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel
Compact and robust construction, without protruding flange and with single-piece lantern bracket and base
Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top
Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box)

SPECIFICATIONS

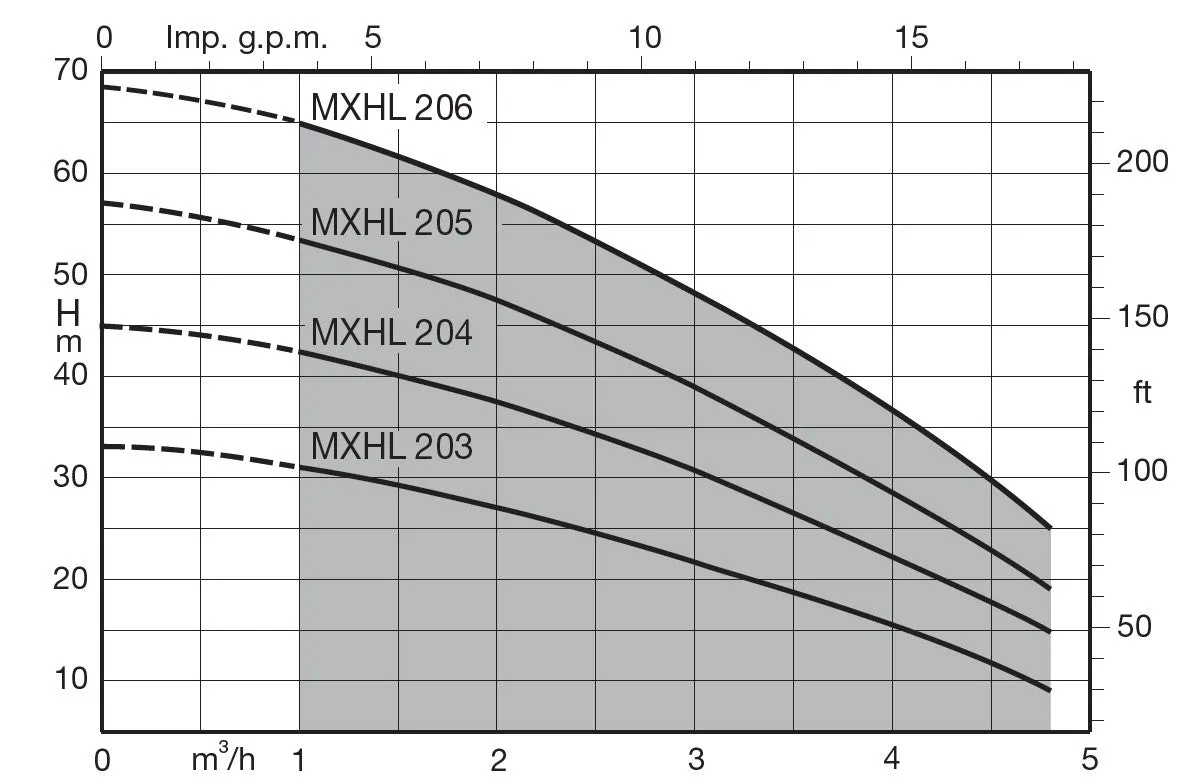

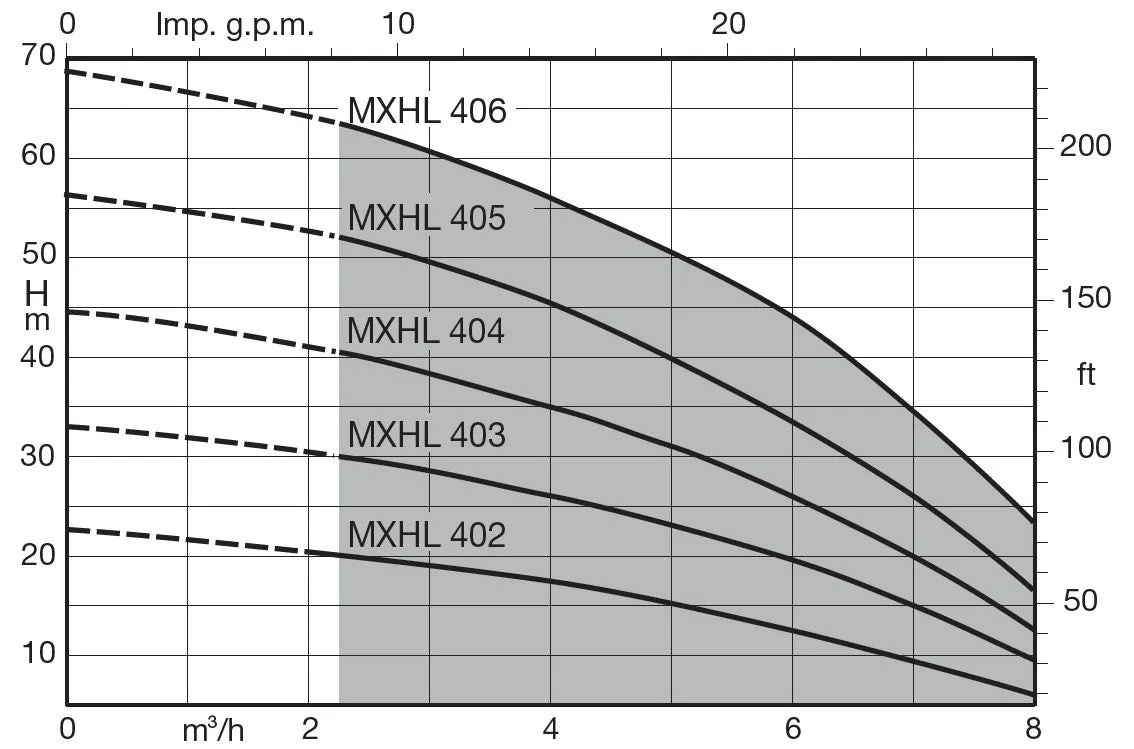

Flow: 1/66 mc/h
Head: 5.5 / 68 m
Power: 0.33/7.5 kw

MOTOR SPECIFICATIONS

2-pole induction motor, 50 Hz (n ≈ 2800 rpm)
Single-phase 230 V ± 10%, with thermal protector
Capacitor inside the terminal box
Insulation class F
Protection IP X4

ELECTRONIC REGULATOR FEATURES

The Idromat pump regulator is equipped with flow and pressure sensor connected to an electronic system
Inlet and delivery connection ports of the same diameter (G1)
Built-in check valve
Pressure gauge 0-10 bar supplied as standard for all the models.
Automatic control of pumps for water supply and increase of network pressure.
Controls the starting/stopping of the pump when cocks are opened/closed.
Protects the pump against dry running and the risk of operation without water at the inlet (caused by a lack of water inflow in the inlet pipe under positive suction head, by a non-immersed suction pipe, by excessive suction lift or by air entering the suction pipe); prevents operation with closed connection ports
Model: Idromat 3-15
Switching-on Pressure: 1,2 bar
Pump Head: >23 m
