Product Details

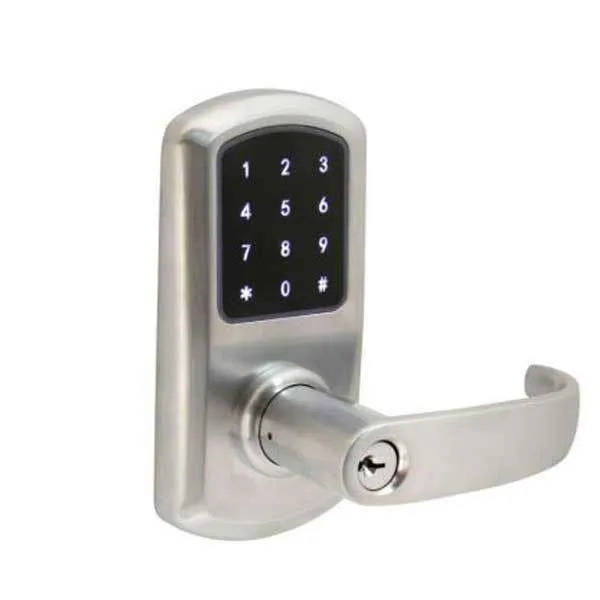

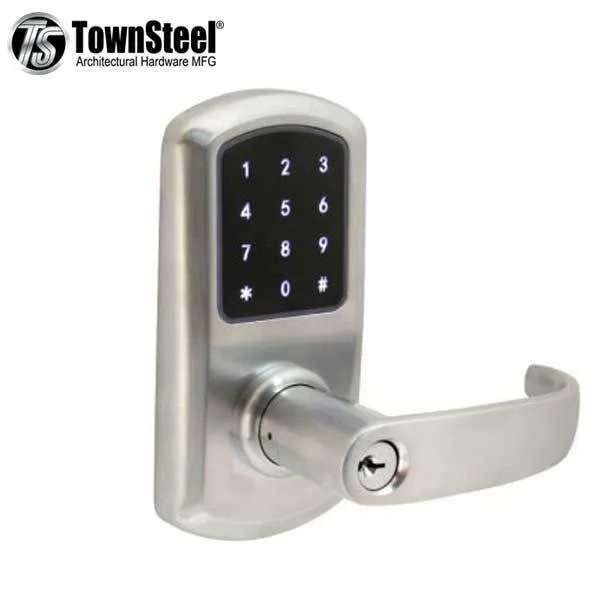

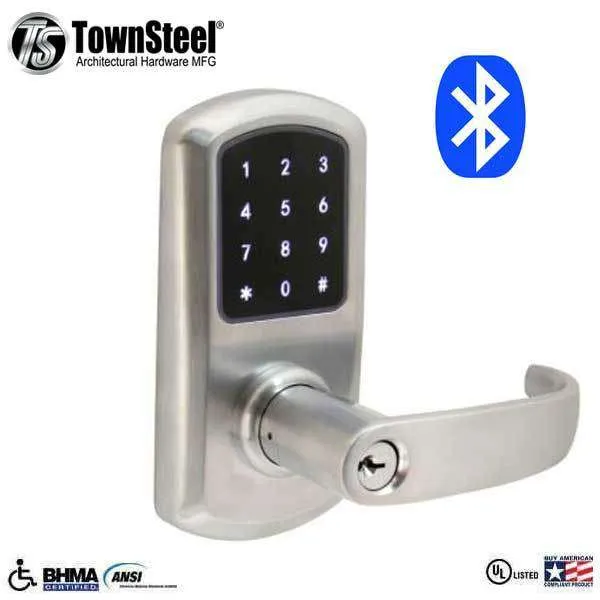

＋The e-Elite 5000 is a modern, low profile lock with stainless steel latch bolt providing easy keyless access to your home using a highly responsive, 12-key illuminated touch and fingerprint resistant keypad programmable with up to 400 user codes interchangeable with RFID keycards/stickers. Mechanical key override lock is available as an extra back-up. The e-Elite 5010 comes with Bluetooth / BLE technology, lock programming with the TownSteel app TSE Home.
- or -
The e-Elite 5000 series is quick and easy to program
More Information Below
Features
- 400 user codes interchangeable with RFID keycards/ stickers
- Code Length: 6 to 10 digits, with anti-pry
- Powered with 4 AA Alkaline batteries, up to 1 year battery life
- System Settings: Passage Mode, Verification Mode, and Sound Adjustment
- Bluetooth / BLE technology allows programming through our mobile app
Specifications
| Door Thickness: | 1-3/4” |
| Backset | 2-3/4” - 2-3/8" |
| Trim |
Rigid Sentinel Lever |
| Latch bolt: | Stainless steel, deadlocking, ½”throw |
| Faceplate | 1-1/8“x 2-1/4” |
| Strike | ASA strike standard, 1-1/4” x 4-7/8” |
| Key Override | Yes |
| Cylinder | 6 pin Schlage C keyway, standard |
| Power Supply |
4AA batteries - No Hard wiring |
| Battery Life |
Up to 1 year w/ Low Battery Alert |
| Certifications | ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, or visit their support page . Once you have the ticket contact UHS Hardware for the return.
